Maximum Power Point Tracking: Understanding the Basics

A PV panel and PV array are great systems to have to do your duty to the environment as well as save money. MPPT charge controllers are a beneficial part of any system. They can increase the efficiency of your system, as well as help to manage the resistance and voltage of the system.

Unfortunately, one of the characteristics of voltage is that as the temperature changes, so too does the resistance and voltage. This can cause a problem when you are trying to use inverters to change to AC power, store energy in a battery bank, or send power to the grid. An MPPT controller is there to help account for any power curve.

What is Maximum Power Point Tracking (MPPT)?

MPPT, also known as Maximum Power Point Tracking, is an operation that is used in charge controllers. It converts DC (direct current) power to DC power to make sure the current and energy match up between the solar panels and any battery bank or utility grid where the power is being sent.

Usually, the electricity from solar panels is at a higher voltage than other systems can use. So the MPPT system helps to change the direct current to a lower level that other systems can use via a smart system and inductance.

testing solar panels

These are commonly used with a solar panel array, or photovoltaic cells, but can also be used with wind turbines and thermophotovoltaic systems.

This not only allows the solar system to run properly but also allows for more efficient and consistent output.

Understanding How Maximum Power Point Tracking Charge Controllers Work

Essentially, the MPPT charge controller module works by looking at the output of the solar panels and compares it to the battery voltage, or the grid it is being sent to.

The MPPT charge controller is continually reading the input of power from the solar modules and making adjustments the keep the power output voltage at a consistent level the rest of the parts on the PV system can use.

Related Articles:

Mounting System

Performance Monitoring System

Pulse Width Modulation Vs. MPPT Charge Controllers

Pulse Width Modulation (PWM) and MPPT charge controllers have a key difference or two that may make one have better applications based on the conditions and energy production of your system.

Both work to bring the charge closer to the battery’s maximum capacitance and monitor the battery’s temperature to prevent overheating.

MPPT charge controllers are better designed to work in any cold temperature. Usually, the voltage increases the colder it is, and MPPT charge controllers can adjust to this higher voltage, whereas PWM cannot.

However, PWM systems can adjust to any solar array size, and it is less expensive than an MPPT controller. Additionally, MPPT controllers aren’t as effective with systems that have a lower load and speed.

MPPT essentially pulls out the power at the maximum power voltage that works best for the system and usually provides you a bit more energy, whereas PWM controllers just draw it out above battery voltage, without considering the efficiency or frequency.

How a Maximum Power Point Tracker Works With Batteries

With batteries, MPPT controllers will adjust the voltage based on the series and advantages that work best with the battery. It will figure out the best voltage operating point for the battery and find a way to adjust the voltage values to best suit the battery while still maximizing the product or the energy. It uses various methods to adjust the amount of power going through the circuit.

When Are Mppt Charge Controllers Necessary?

It is necessary to use an MPPT charge controller for off-grid systems or when you want a battery backup. Without using an MPPT charge controller as a converter, the voltage could damage the battery and other software with the output power.

Solar systems rely on the sun to create energy. This energy fluctuates in a general cycle as the amount of sun and the temperatures fluctuate throughout the day.

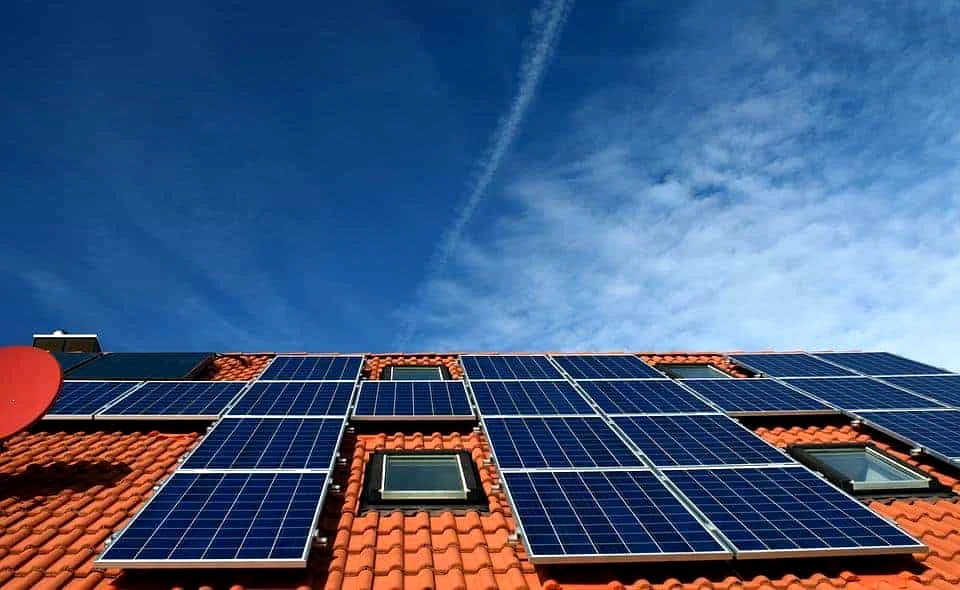

solar panels
